impulse sealer frm 980

impulse sealer frm 980

Categories
horizontal continuous sealing machine
Brand
KUNBA
Model
frm 980
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
02/16/2022
Product Description

frm 980 sealing machine     high-efficiency & perfect ink printer

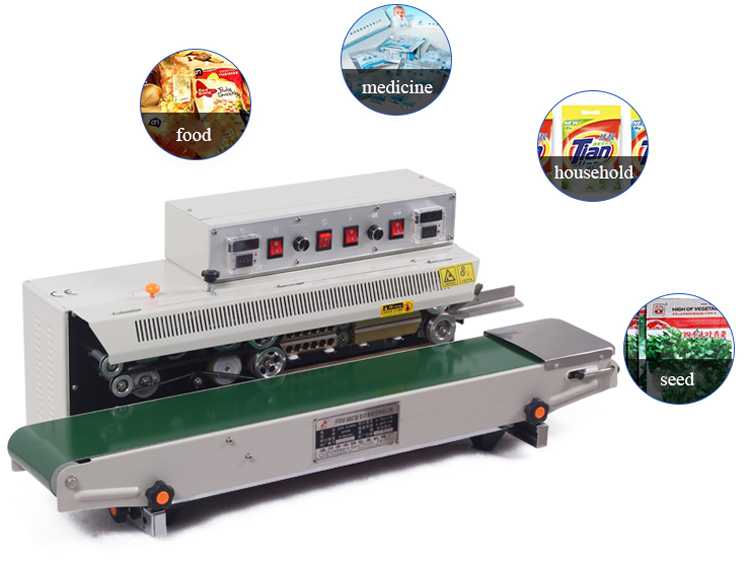

applicable to the major industries oi" aluminum foil bags, plastic bags, composite bag sealing,The device has a solid seal, high efficiencyequipment has a handsome In appearance, advanced technology, low power consumption, easily operation and maintenan ce advantages.

electronic constant temperature control, stepless speed regulation Can seal different variety of material plastic bags

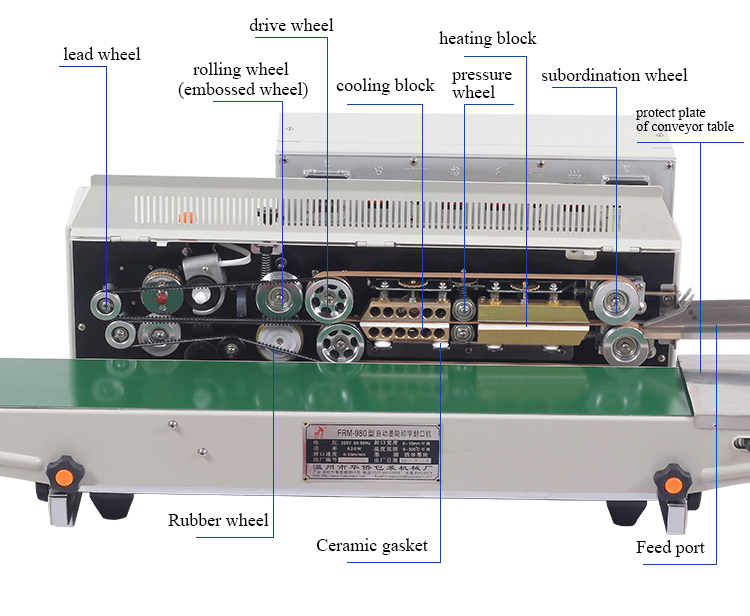

the working principle of sealing machine

w’hen it turns on, the electronic theronic thermal component products quantity of heat to make the Temperature and speed necessary for the sealing material through the temperature control meter and the speed Regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between The two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the Plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the Pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive Part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor.

frm980 grand type ink printing sealing machine
Product information

kunba frm-980 ai grand type ink-printing sealing machine
Technology parameters

model

frm-980w

temperature range

2-250 ℃

voltage

ac200-240/150hz

printing letters

20 granule

power

620w

conveyor loading

<5kgs

sealing speed

0-24m/min

shipment dimension

960x420x365mm

sealing width

6-10mm

gross weight

30kg

ffifigsfsflm

0.02-0.80mm





frm980 grand type ink printing sealing machine
Product details

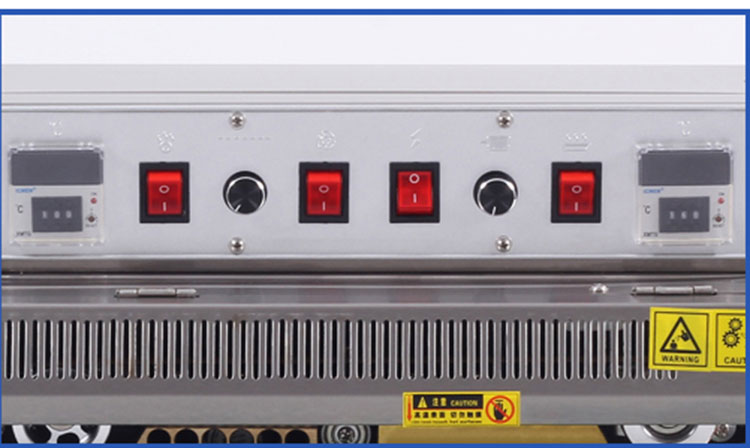

01.simple operation panel
Simplepmlsimple operation,heating bar temperature, the temperature can be seen to make your operation comfortable.built-in motor speed controller and print position controller,motor speed and print position separately controllable, easy to adjust and easy to operate.

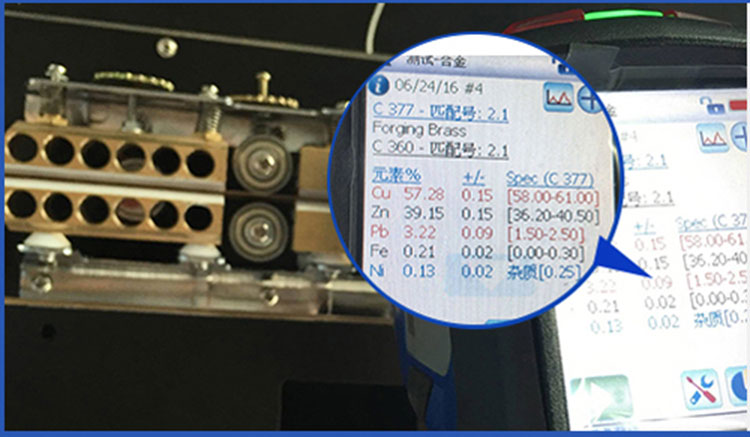

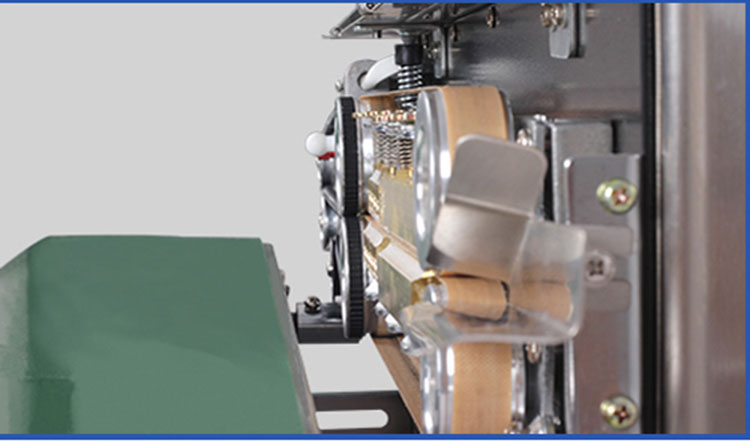

02. sealing parts
H59 brass with bold widening heating block, high strength is not easy to deformation,corrosion resistance, more uniform heating and longer service life. Upper and lower ends of heating blocks cooling block all have thermal pads to prevent heat transfer to the body- cooling fan cooling blockheat fastermore stereotypes of more beautiful.

03.automatic printing by ink wheel
Selection of imported matedals ink whee], ink wheel will be automatically run am the optical eye. The shading of ink-mint can be adjustable, the position of ink-printing words can be adjustable, simple and easy to opaate.

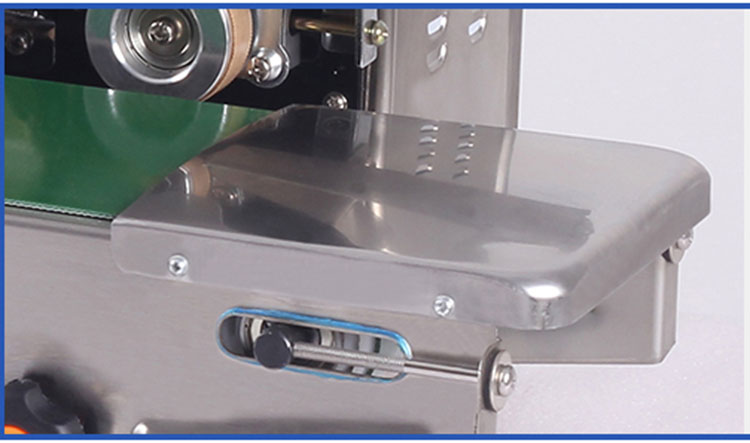

04.conveyor table guard
Adopt stainless steel material without comer anti-knock damage,more humane, more secure-

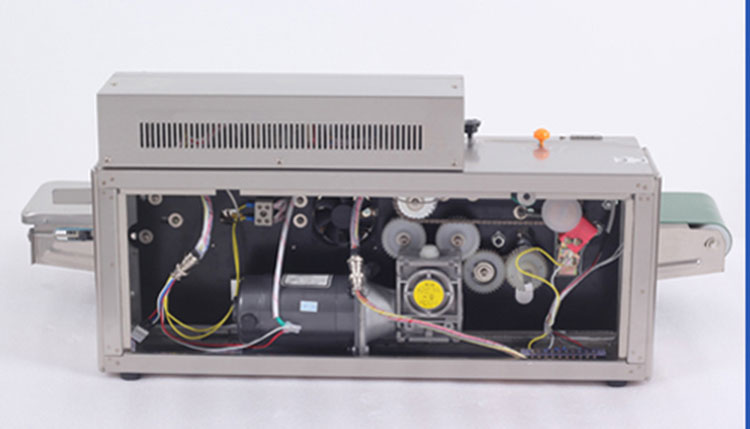

05.integration of the motor & gearbox
Adopt the design principle of german integration will be high transmission efficiency, low noise, cooling fast, service life is 3-5 tim higher than similar products.

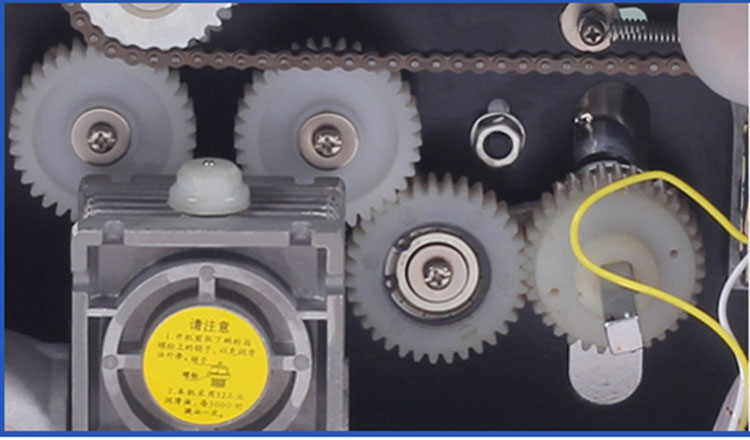

06.imported industrial nylon gear
Imported from the netherlands industrial nylon gear, smooth transmission, no noise, longer service life & wear. (if the nylon gear is damaged, it can be free replacement for lifetime.)

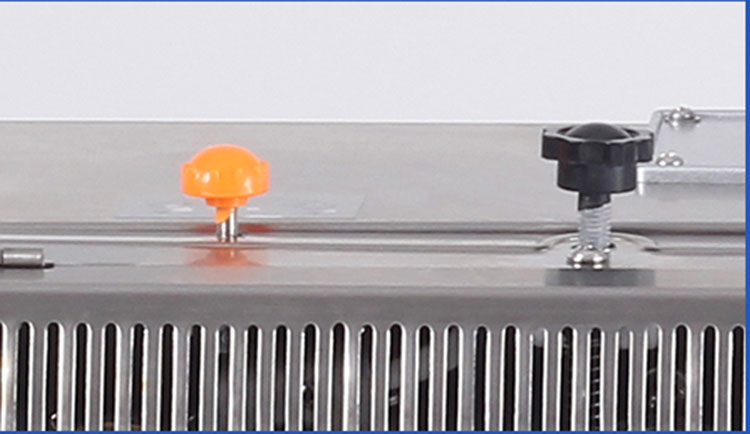

07.the pressure of embossed roller ink wheel can be adjustable
The embossed depth and ink shades can be adjusted according to the actual situation.

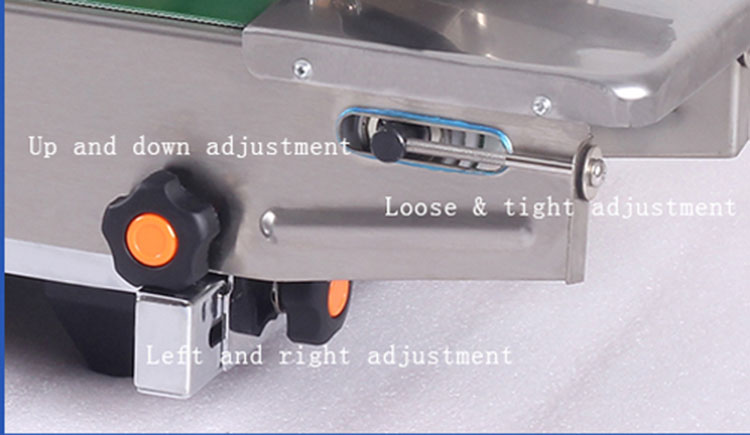

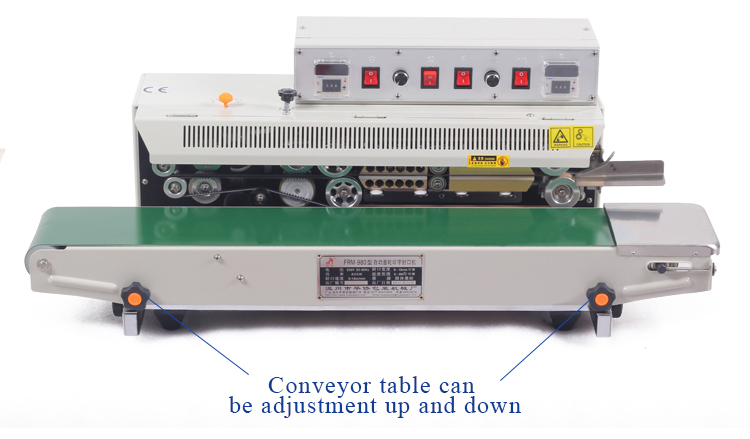

08.table can be adjusted
Up and down, front and back of the conveyor can be adjusted,it can be adjusted according to actual needs to improve work efficiency.

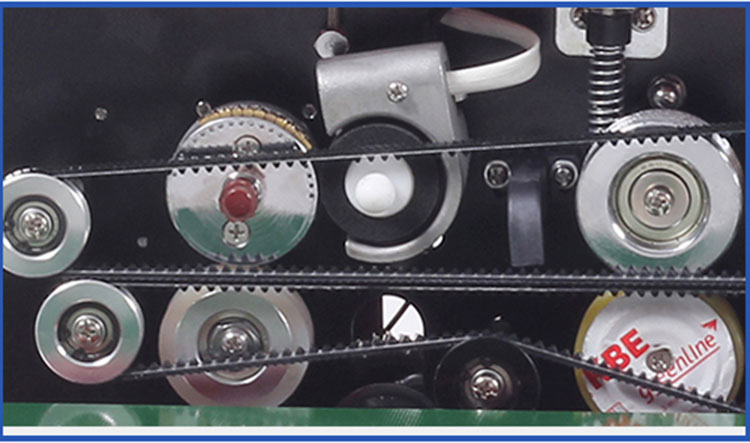

09.fine workmanship
The mechanical transmission accurately fits the heating block,sealing effect is better.
