SF-150

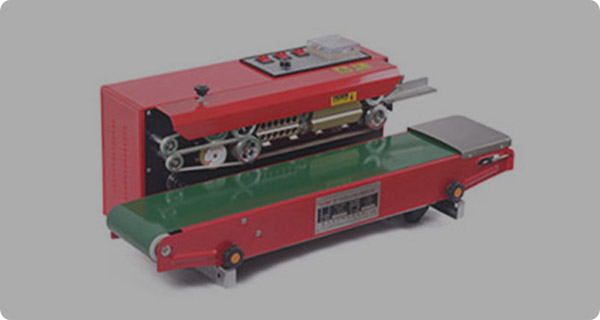

Plastic Bag Sealer Machine SF-150

Sealing Speeds:	26 m/min
Sealing height:	10mm
Package Size:	860420380mm
Conveyortable size:	800*150mm

Select variant:

SF-150 painted SMT-150W painted SMT-150W

Certification:

Get in touch now!

Product Applications

Product Description

Featuring a stainless steel housing, equipped with a high-precision temperature control system and CNC-machined solid copper heating modules, ensuring rapid and uniform sealing. Supports both vertical and horizontal dual-mode operation. Suitable for all types of packaging sealing requirements.

Features Overview

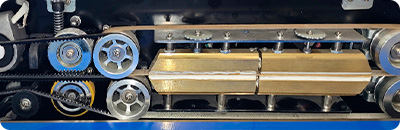

Utilizes high-purity No. 59 copper material to ensure uniform heating and precise temperature control.

Rapid heating and quick cooling for fast molding, with sealing speeds reaching 26 meters per minute.

Flexible vertical or horizontal operation to accommodate production line requirements.

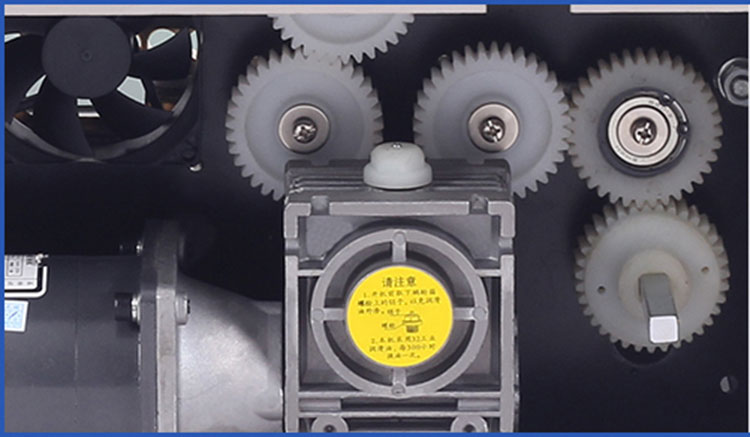

Equipped with worm gearbox and nylon gears featuring periodic maintenance alerts to extend service life.

Technical Parameters

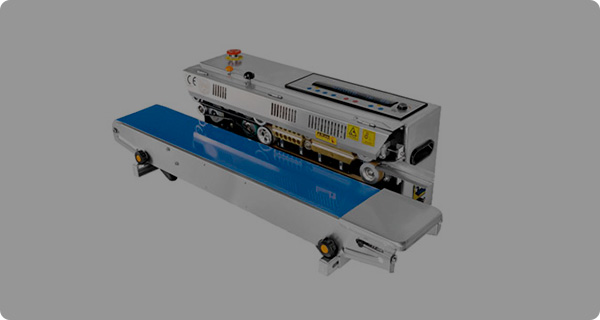

SMT-150 stainless steel

SF-150 painted

SMT-150W painted

SMT-150W

Conveyor table size	800*150mm
Supply voltage	220V/50Hz
The power of the whole machine	620W
Sealing speed	26m/min
Typography type	Drum indentation
Temperature control range	0~300℃
Model features	Sealing indentation with a bag sealing width of 10mm
Sealing height	10mm
Conveyor table load	<8kg
The size of the whole machine	800395300mm
Package Size	860420380mm
Net weight of the whole machine	21.5kg
Gross weight oflogistics	24kg
Material	The shell body is made of stain-less steel

Note: The size is measured by hand and it is normal to have a slight error.

Conveyor table size	800*150mm
Supply voltage	220V/50Hz
The power of the whole machine	620W
Sealing speed	26m/min
Typography type	Drum indentation
Temperature control range	0~300℃
Model features	Sealing indentation with a bag sealing width of 10mm
Sealing height	10mm
Conveyor table load	<8kg
The size of the whole machine	800395300mm
Package Size	860420380mm
Net weight of the whole machine	21.5kg
Gross weight oflogistics	24kg
Material	The shell body is made of stain-less steel

Note: The size is measured by hand and it is normal to have a slight error.

Conveyor table size	800*150mm
Supply voltage	220V/50Hz
The power of the whole machine	620W
Sealing speed	26m/min
Typography type	Drum indentation
Temperature control range	0~300℃
Model features	Sealing indentation with a bag sealing width of 10mm
Sealing height	10mm
Conveyor table load	<8kg
The size of the whole machine	800395300mm
Package Size	860420380mm
Net weight of the whole machine	21.5kg
Gross weight oflogistics	24kg
Material	The shell body is made of iron sheets

Note: The size is measured by hand and it is normal to have a slight error.

Model	SMT-150W
Power Supply	AC220/50Hz 110V/60Hz
Power Consumption	60W
Heating Power	280Wx2
Sealing Speeds	0-28m/min
Sealing Width	10mm
Temperature Range	0-280℃
Conveyor Loading	≤8kg
Shipment Dimension	860x410x375mm
N.W&G.W	22kg/25kg

SMT series sealer can be used in98% of the bags on the market.

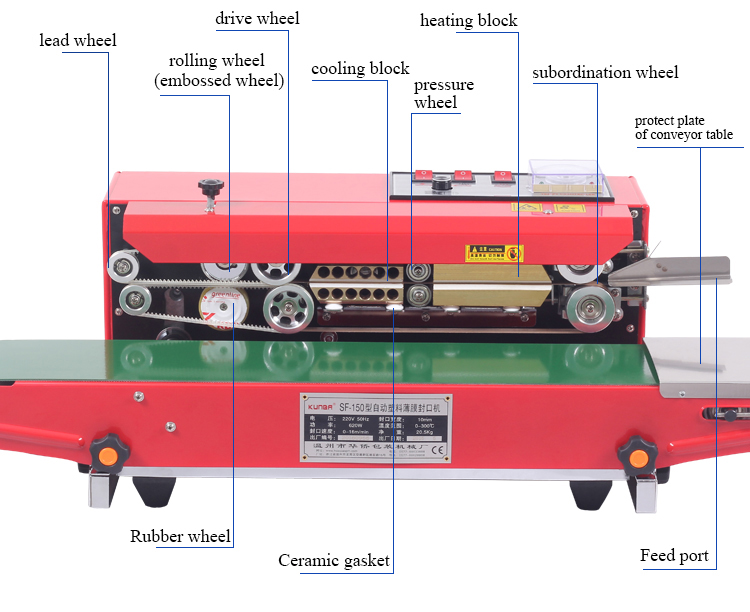

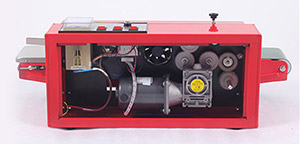

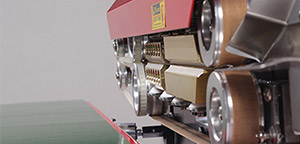

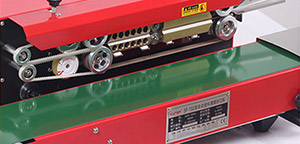

Equipment Details

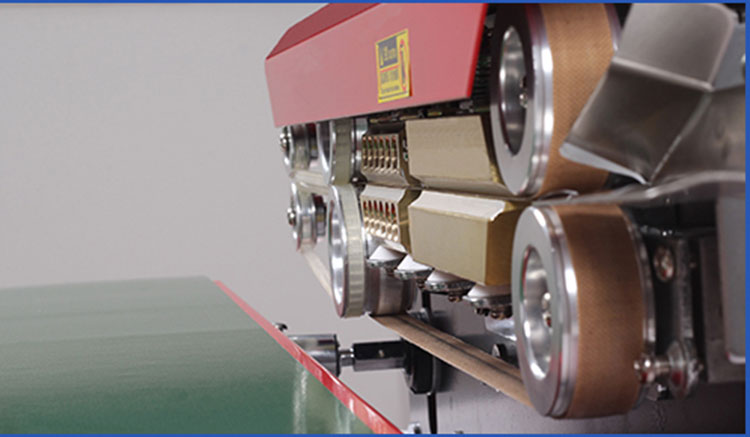

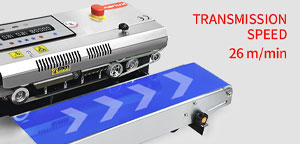

High-speed sealing, transmission speed 26 m/min

Product Comparison

Kunba's Equipment

Other Brands

Pure Copper 60-Watt High-Power Motor (26 meters per minute)

CORE MOTOR

Non-Copper Fake 80-Watt Low-Power Motor (14 meters per minute)

National Standard Copper Wire

ELECTRICITY IS SAFE

Non-Standard Aluminum Wire

With safety air switch

SECURITY PROTECTION

Without safety air switch

Pure Refined Copper Heating Block

MATERIAL COMPARISON

Copper-Plated Heating Block

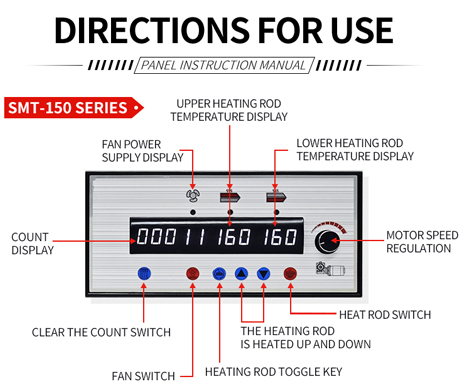

It can calculate temperature control patches for upper and lower compartments, with an intelligent control panel for PC

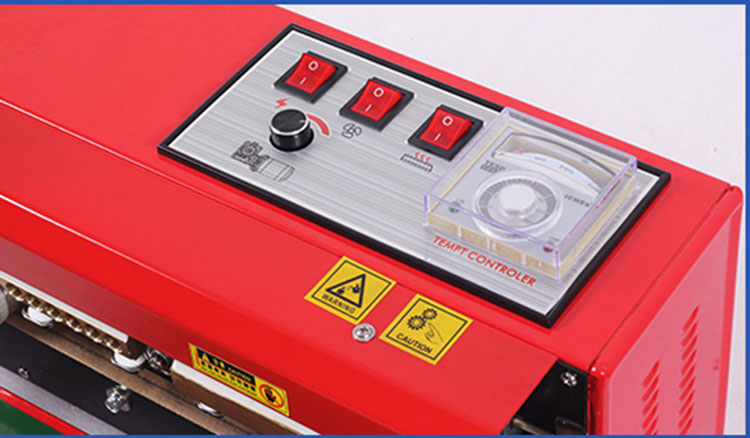

CONTROL PANEL

Features an upper control panel design; lower temperature control gauge and lower switch

59# Pure Copper, Weight 682g CNC Cutting Process

COOLING FAST

Aluminum-Copper Plating Weight 123.9g, Casting Process

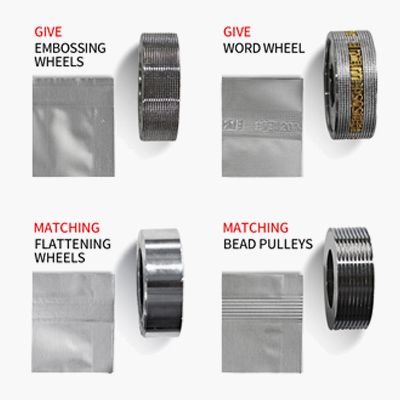

Optional Accessories

Optional Steel Stamping

Customizable Features

Dual-sided heating

FAQ

What types of vacuum packaging machines do you offer?

We offer a wide range of vacuum packaging machines, including tabletop vacuum packaging machines, vacuum laminating packaging machines, floor standing vacuum packaging machines, external vacuum packaging machines and more. Each type of machine is designed to meet different packaging needs.

What are the advantages of tabletop vacuum sealing machine compared with other types of vacuum sealing machine?
