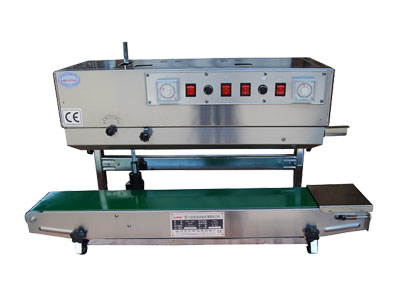

Solid inker printer plastic film sealer FRM 980LW

Solid inker printer plastic film sealer FRM 980LW

Categories
Vertical Continuous Sealing Machine
Brand
KUNBA
Model
FRM 980LW
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
11/26/2019
Product Description

Solid inker printer plastic film sealer FRM 980LW

Unlimited sealing length
User-friendly
Number and letter embossing
Horizontal and vertical double usage
Digital temperature controlling
Durability

Technology Parameters

Model

FRM-980LW

Power Suppplier

220V/50HZ 110V/60Hz

Power Consumption

80W

Heating Power

280W*2

Printing Power

60W*2

Sealing Speed

0-16m/min

Printing Material



Sealing width

10mm

Temperature range

0-300℃

Conveyer loading

≤5kg

Shipment Dimension

965*430*380mm

N.W&G.W

28.7kg/31.7kg

Structure And Working Principle

This machine is composed by frame, speed controlling system, heating system, Conveyor and embossing system.

Power on the machine and switch on the heating system, 1 minute later the copper blocks is heating.

Adjust the temperature and speed according to thickness and material of bags, to find out the best parameter.

Put the mouth of bag between the 2 running sealing belts, to let the sealing belts convey the bag to the heating area.

The mouth of bags is clamped and heated by the copper blocks.

Then the sealed bag is convey to the cooling area where the embossing wheel is rolling.

There are many patterns optional, including mesh, strip, smooth and letter-number embedded.
