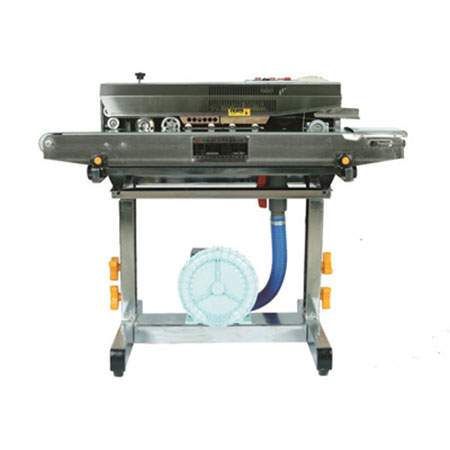

Air filling continuous sealer FRQM 980C
Technology Parameters
Model | FRQM 980C |
Power Suppplier | 220V/50HZ 110V/60Hz |
Power Consumption | 80W |
Airpump Power | 200W |
Heating Power | 280W*2 |
Sealing Speed | 0-16m/min |
Sealing width | 10mm |
Temperature range | 0-300℃ |
Conveyer loading | ≤5kg |
Shipment Dimension | 1030*590*880mm |
N.W&G.W | 41kg/48kg |
the working principle of sealing machine
when it turns on, the electronic theronic thermal component products quantity of heat to make the Temperature and speed necessary for the sealing material through the temperature control meter and the speed Regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between The two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the Plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the Pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive Part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor
