Technical specifications

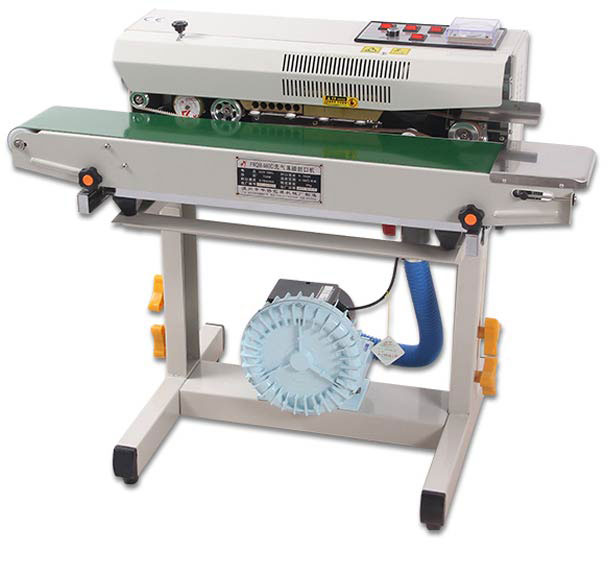

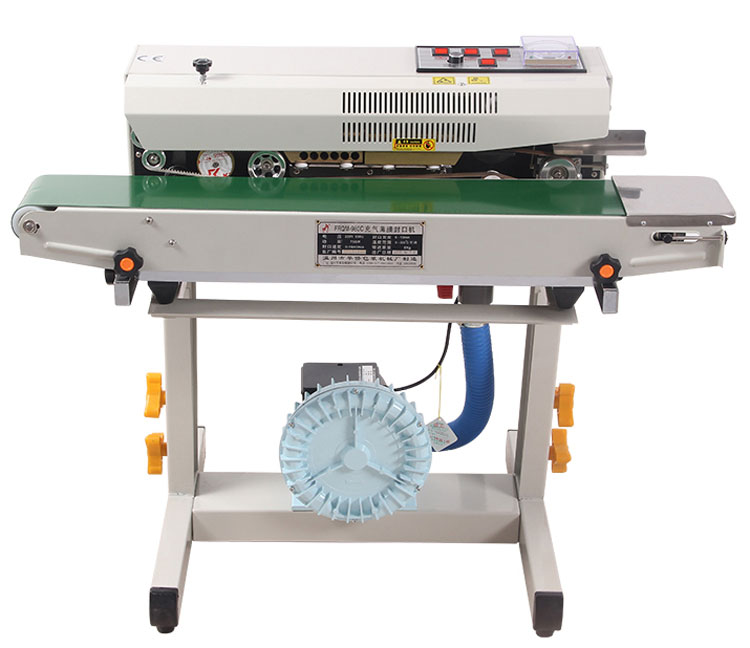

continuous band sealing machine FRQM 980c

FRQM 980c sealing machine high-efficiency & perfect ink printer

electronic constant temperature control, stepless speed regulation
Can seal different variety of material plastic bags

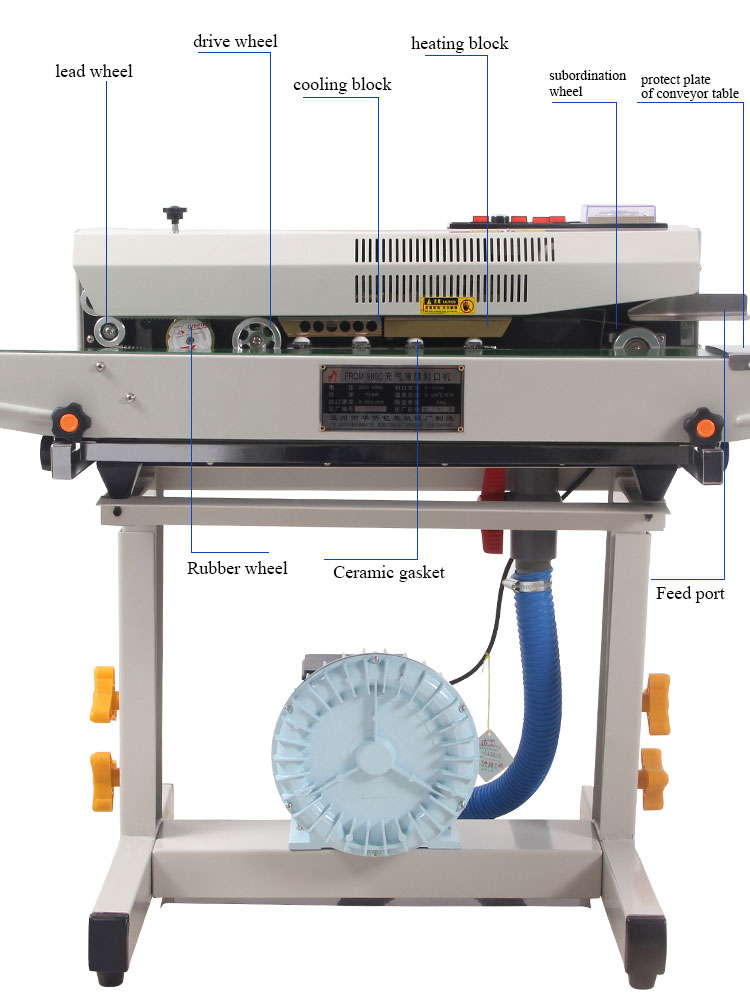

the working principle of sealing machine

when it turns on, the electronic theronic thermal component products quantity of heat to make the Temperature and speed necessary for the sealing material through the temperature control meter and the speed Regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between The two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the Plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the Pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive Part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor.

kunba frqm980c ground type air filling sealing machine

Technology parameters

model frqm98oc
voltage ac220/50hz 110v/60hz
motor power 80w

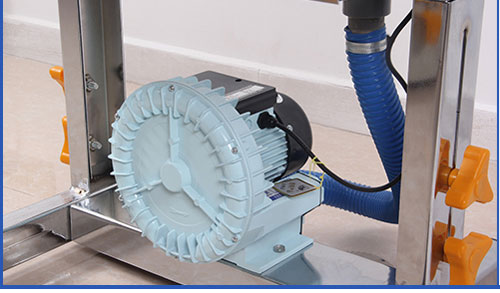

air pump power 200w
heating power 280w*2
sealing speed 0-16m/min
sealing width 10mm
temperature range 0-3 00°c
conveyor loading <5kgs
shipment dimension 1030*590*88omm
weight 41kg/48kg

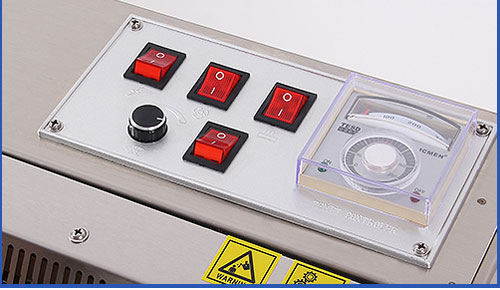

01.simple operation panel
Simplepanelsimple operation,heating bar temperature,
the temperature can be seen to make your operation
comfortable.built-in motor speed controller and print position controller, motor speed and print position separately controllable,
easy to adjust and easy to operate.

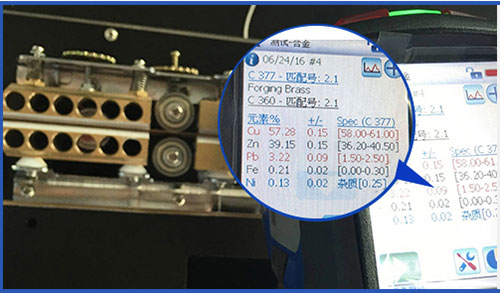

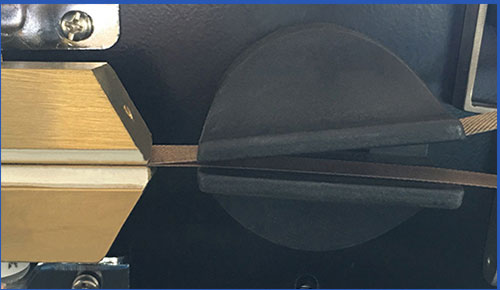

02. Sealing Parts
H59 brass with bold widening heating block,
high strength is not easy to deformation,
corrosion resistancei more uniform heating and longer service life.
Upper and lower ends of heating blocks cooling block all have
thermal pads to prevent heat transfer to the body- cooling fan cooling blockheat fastermore stereotypes of more beautiful.


03.filling nozzle
The gas is injected into the bag through the filling nozzle

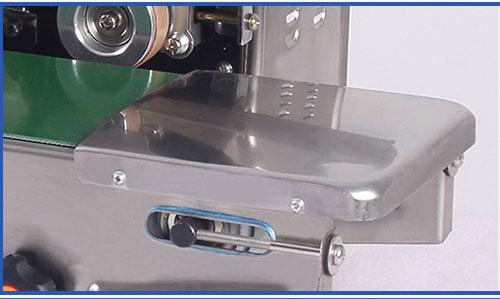

04.Conveyor Table  Guard
Adopt stainless steel matefial without comer anti-knock damage,more humane, more secure-.

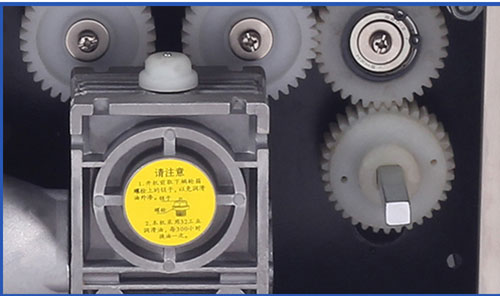

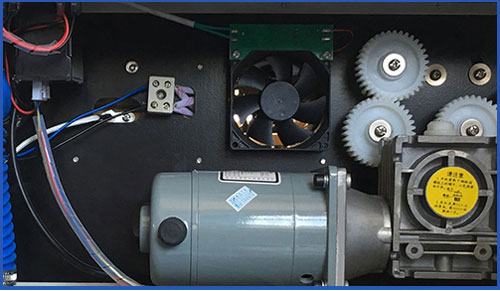

05.integration of the motor & gearbox
Adopt the design principle of german integration will be high transmission efficiency,
low noise, cooling fast, service life is 3-5 tim higher than similar products.


06.imported industrial nylon gear
Imported from the netherlands industrial nylon gear, smooth transmission,
no noise, longer service life & wear. (if the nylon gear is damaged,
it can be free replacement for lifetime.)

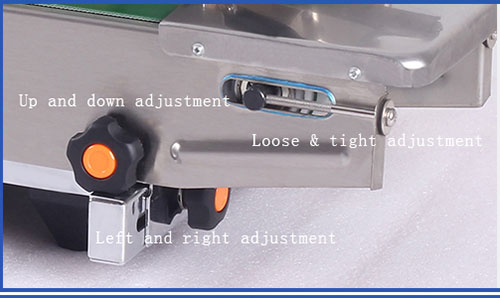

07.Table Can Be Adjusted Up

And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efliciency.

08.equipped w'ith a height adjustable ground frame
Can adjust machine according to operation habit


Toucan brochure

For all available seal configurations, download the Toucan series brochure

Download brochure

Technical specifications

For alla available options, download the tech specs of the Toucan Square

Download specs
Enjoy the benefits of a Toucan Square

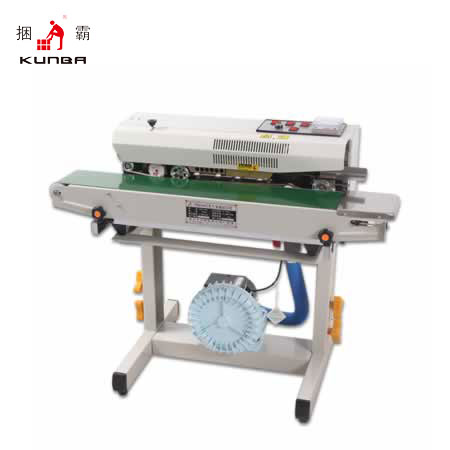

continuous band sealing machine FRQM 980c

Kunba's unique table-top model suitable for the vertical packaging of products.

  • Standard with 10 program memory
  • Standard Time control
  • Vertical packaging
  • Standard Soft Air
