Technical specifications

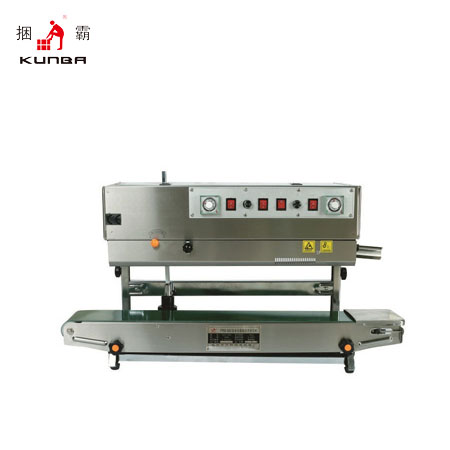

Solid inker printer plastic film sealer FRM 980LW

Unlimited sealing length
User-friendly
Number and letter embossing
Horizontal and vertical double usage
Digital temperature controlling
Durability

Technology Parameters

Model FRM-980LW
Power Suppplier 220V/50HZ 110V/60Hz
Power Consumption 80W
Heating Power 280W*2
Printing Power 60W*2
Sealing Speed 0-16m/min
Printing Material
Sealing width 10mm
Temperature range 0-300℃
Conveyer loading ≤5kg
Shipment Dimension 965*430*380mm
N.W&G.W 28.7kg/31.7kg

Structure And Working Principle

This machine is composed by frame, speed controlling system, heating system, Conveyor and embossing system.

Power on the machine and switch on the heating system, 1 minute later the copper blocks is heating.

Adjust the temperature and speed according to thickness and material of bags, to find out the best parameter.

Put the mouth of bag between the 2 running sealing belts, to let the sealing belts convey the bag to the heating area.

The mouth of bags is clamped and heated by the copper blocks.

Then the sealed bag is convey to the cooling area where the embossing wheel is rolling.

There are many patterns optional, including mesh, strip, smooth and letter-number embedded.

Toucan brochure

For all available seal configurations, download the Toucan series brochure

Download brochure

Technical specifications

For alla available options, download the tech specs of the Toucan Square

Download specs
Enjoy the benefits of a Toucan Square

Solid inker printer plastic film sealer FRM 980LW

Kunba's unique table-top model suitable for the vertical packaging of products.

  • Standard with 10 program memory
  • Standard Time control
  • Vertical packaging
  • Standard Soft Air
Request Quotation
