Technical specifications

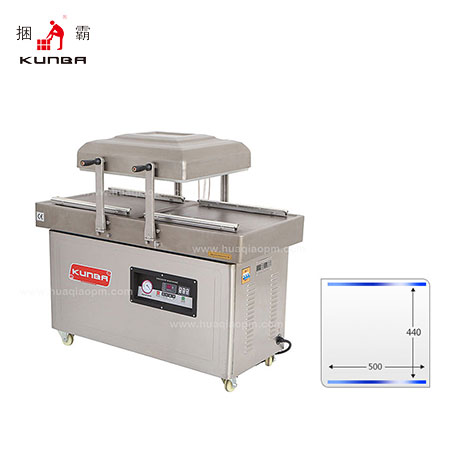

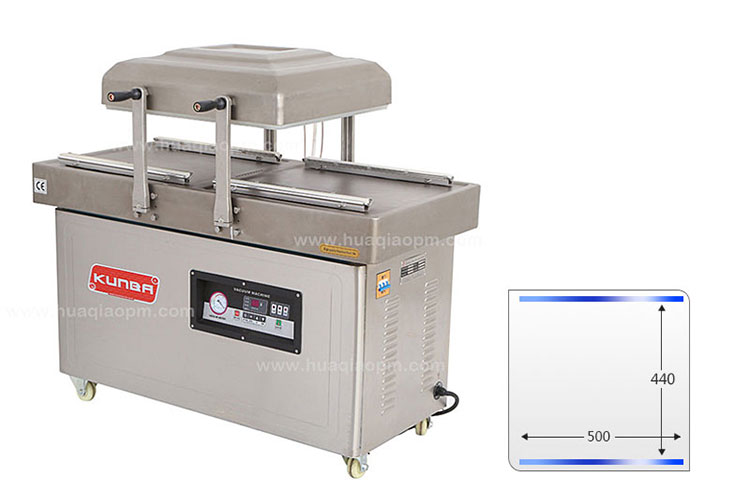

Double charmber Vacuum Packing (flat type)DZ-500/2SB

Technology Parameters

Power Supply	AC380V/50Hz 220V/60Hz
Power Consumption	0.75Kwx2
Heat Sealing Power	0.9Kw
Ultimate Vacuum	0.1hPa(mbar)
Pump Capacity	20m3/hx2
/Sealing Length	490mm
Sealing Width	10mm
Shipment Dimension	1340x740x1020mm
N.W&G.W	182Kg/232Kg

Efficiency of pump:
a) DZ400/2SB: 20cbm/hour
b) DZ500/2SB: 2 x 20cbm/hour
c) DZ600/2SB: 40cbm/hour
d) DZ700/2SB: 63cbm/hour

Vacuum chamber size:
a) DZ400/2SB: L440 x W440 x H115mm
b) DZ500/2SB: L480 x W550 x H115mm
c) DZ600/2SB: L630 x W650 x H115mm
d) DZ700/2SB: L720 x W780 x H150mm

Options:
a) Gas-flush system
b) Bush pump
c) Different chamber depth and sealing-bar position and heater element width Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily
